Commercial 10 GPM flow, ready to mount
HiLow Solutions 10 GPM Cold Water Pressure Washer Skid
- Regular price
- $8,499.99
- Fast, tracked shipping
- Prices in CAD

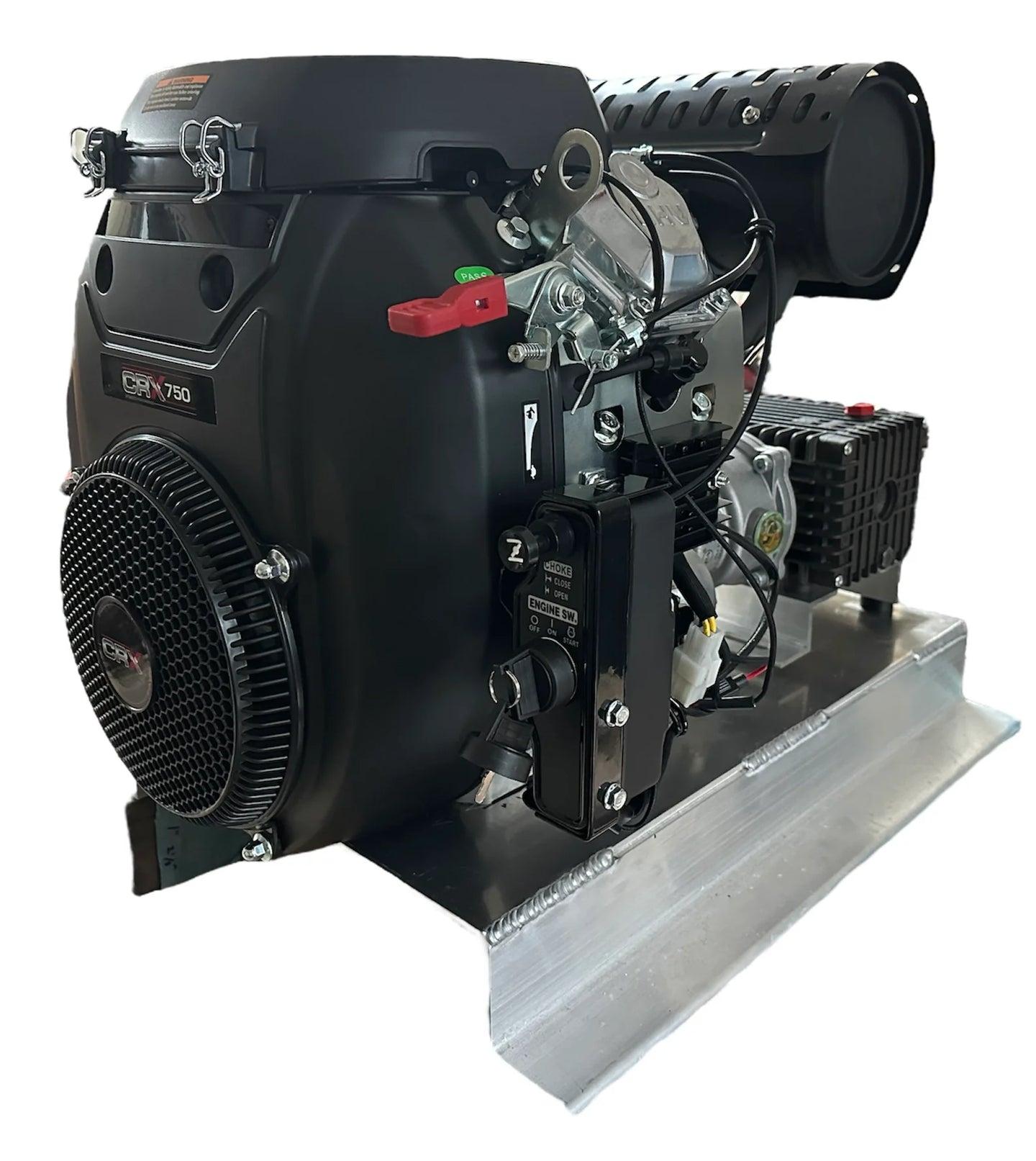

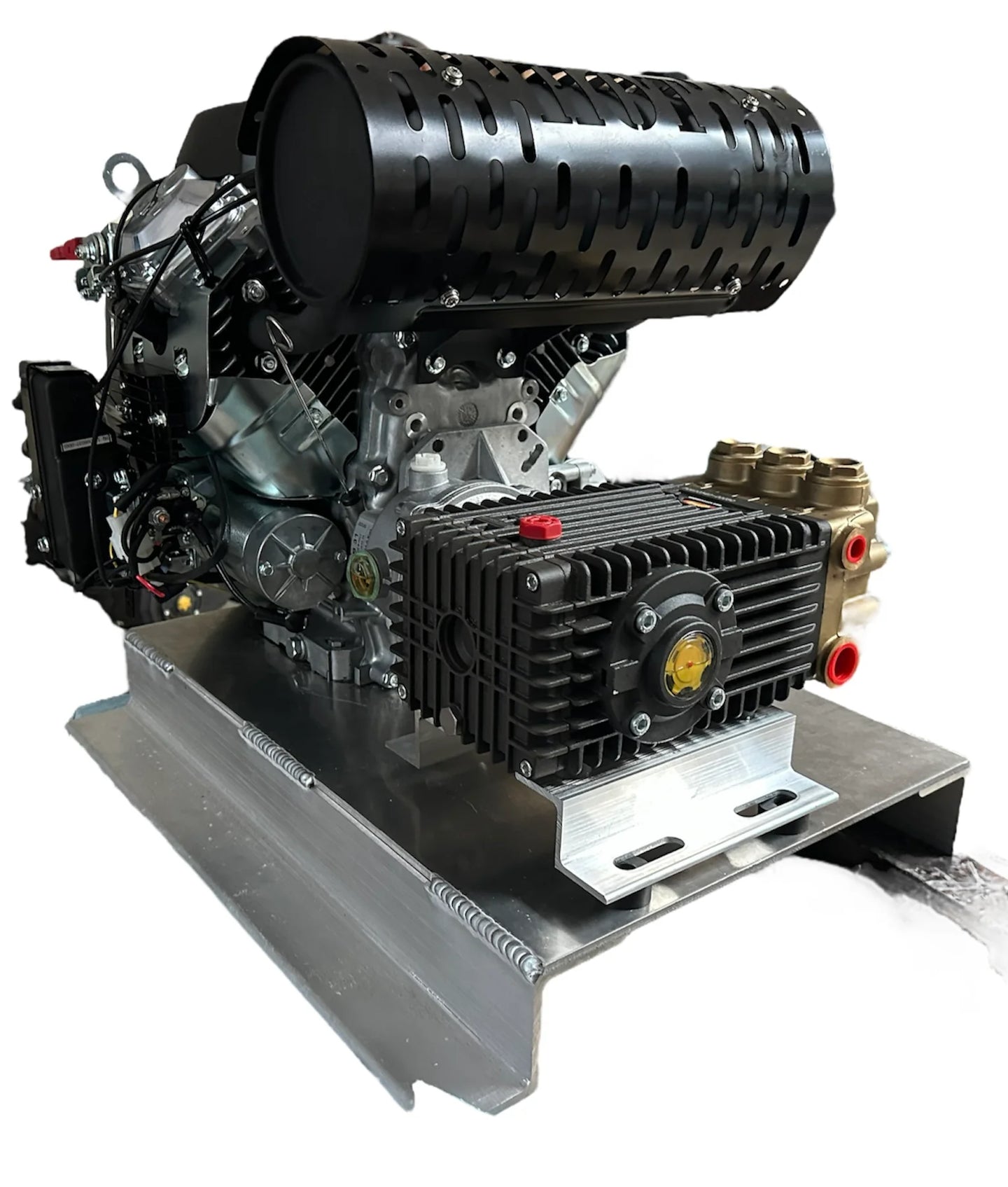

The HiLow Solutions 10 GPM skid is a commercial cold water pressure washer rated 3200 PSI, powered by a CRX 750 engine with electronic fuel injection and a gear-driven General Pump TSF2221. It comes fully assembled on a 1/4" custom skid, ready to bolt to a truck, flat deck or trailer.
- 10 GPM / 3200 PSI
- EFI engine
- Gear-driven General Pump
- Authorized HiLow dealer
Key benefits
Why choose HiLow Solutions 10 GPM Cold Water Pressure Washer Skid
-
10 GPM speed
10 GPM cuts flatwork and paver prep time
-
EFI, no carburetor
EFI: no carburetor to clean or adjust, better fuel efficiency
-
Gear-driven pump
Gear-driven pump for steady, efficient flow
-
Heavy 1/4" skid
Heavy 1/4" skid built for truck and trailer mounting
-
Engine and pump warranty
Manufacturer warranty on engine and pump
At a glance
Specifications
| Pressure | 3200 PSI |
|---|---|
| Flow | 10 GPM |
| Engine | CRX 750 with EFI |
| Pump | General Pump TSF2221, gear driven |
| Frame | 1/4" custom skid |
| Water | Cold water |
| Not included | Gun/wand, tips, hose (sold separately) |
Works on
- Truck mounts
- Flat decks
- Trailer rigs
- Flatwork
- Paver prep
How to use
Step-by-step application
-
Bolt and fuel
Bolt the skid to the deck and connect the fuel supply (for example our aluminum fuel cell).
-
Connect supply and hose
Connect a buffer tank or supply line and a 3/8" or 1/2" pressure hose.
-
Prime and start
Prime and start the machine following the engine and pump manuals.
-
Match cleaner and nozzles
Match your surface cleaner and nozzles to 10 GPM (see chart).
-
Flush and winterize
After use, flush chemicals and winterize before freezing temperatures.
Compare
How HiLow Solutions 10 GPM Cold Water Pressure Washer Skid compares
Side-by-side with alternatives from our catalogue.
| Feature | HiLow 10 GPM Skid | The Platypus | The Crocodile |
|---|---|---|---|
| Format | Skid only (1/4" custom skid) | Turn-key 6.5 x 12 ft open-deck trailer, 3,500 lb GVWR | Modular 8 x 14 ft dual-axle flat deck, electric brakes, 12,000 lb GVWR |
| Pressure washers | 1 x 10 GPM / 3200 PSI, CRX 750 EFI, General TSF2221 pump | 1 x HiLow 10 GPM skid | 1 x GPM 10 GPM / 3000 PSI standard; add up to 2 more (plumbed for 3) |
| Buffer tank | Not included | 225 US gal | 525 US gal |
| Hose reels | Not included | 2 x manual 18" aluminum | 3 x powered 18" reels (1 or 2 extra optional) |
| Surface cleaners | Not included | 26" HiLow (Stripinator optional) | 26" GPM surface cleaner + HiLow Stripinator |
| Fuel | - | 8 gal aluminum fuel cell | 22 gal aluminum tank |
| Best for | Building your own truck or trailer rig | Startups and second-year businesses towing with a van or mid-size truck | Growing crews that want to add machines later |
Swipe the table sideways to compare.
Full product details
The HiLow Solutions 10 GPM skid is a commercial cold water pressure washer rated 3200 PSI, powered by a CRX 750 engine with electronic fuel injection and a gear-driven General Pump TSF2221. It comes fully assembled on a 1/4" custom skid, ready to bolt to a truck, flat deck or trailer.
StoneSealer Canada is an authorized HiLow Solutions dealer in Canada. We ship HiLow equipment across Canada from British Columbia, priced in CAD.
Key benefits
- 10 GPM cuts flatwork and paver prep time
- EFI: no carburetor to clean or adjust, better fuel efficiency
- Gear-driven pump for steady, efficient flow
- Heavy 1/4" skid built for truck and trailer mounting
- Manufacturer warranty on engine and pump
Specifications
| Spec | Detail |
|---|---|
| Pressure | 3200 PSI |
| Flow | 10 GPM |
| Engine | CRX 750 with EFI |
| Pump | General Pump TSF2221, gear driven |
| Frame | 1/4" custom skid |
| Water | Cold water |
| Not included | Gun/wand, tips, hose (sold separately) |
Compare our trailers and skids
| HiLow 10 GPM Skid | The Platypus | The Crocodile | |
|---|---|---|---|
| Format | Skid only (1/4" custom skid) | Turn-key 6.5 x 12 ft open-deck trailer, 3,500 lb GVWR | Modular 8 x 14 ft dual-axle flat deck, electric brakes, 12,000 lb GVWR |
| Pressure washers | 1 x 10 GPM / 3200 PSI, CRX 750 EFI, General TSF2221 pump | 1 x HiLow 10 GPM skid | 1 x GPM 10 GPM / 3000 PSI standard; add up to 2 more (plumbed for 3) |
| Buffer tank | Not included | 225 US gal | 525 US gal |
| Hose reels | Not included | 2 x manual 18" aluminum | 3 x powered 18" reels (1 or 2 extra optional) |
| Surface cleaners | Not included | 26" HiLow (Stripinator optional) | 26" GPM surface cleaner + HiLow Stripinator |
| Fuel | - | 8 gal aluminum fuel cell | 22 gal aluminum tank |
| Best for | Building your own truck or trailer rig | Startups and second-year businesses towing with a van or mid-size truck | Growing crews that want to add machines later |
Surface cleaner sizing chart: choose by GPM
| Your pressure washer flow | Best match in our range | Notes |
|---|---|---|
| 4 to 6 GPM | Gun Delete Kit + Tornado Bar (5.5-6 GPM option) on your existing 16-24" cleaner | Removing the trigger valve and 1/4" line gets more of your real flow to the ground |
| 8 GPM | 26" HiLow Surface Cleaner (8 GPM) or Stripinator | Single-swivel Tornado Bars are rated for 8 GPM and up |
| 10 GPM | 26" HiLow Surface Cleaner (10 GPM) or Stripinator | Matches the HiLow 10 GPM skid, Platypus and Crocodile |
| 15 to 20 GPM | GPM 30" Dual Swivel (18 or 20 GPM option) | GPM suggests 12-30 GPM for the 30" Dual Swivel (a 36 GPM configuration is also available); dual-swivel Tornado Bars need 16 GPM or more |
| 30 to 36 GPM | GPM 30" Dual Swivel (30 or 36 GPM configuration) | Multi-machine rigs such as a Crocodile with Siamesed pumps. GPM's suggested window for the 30" is 12-30 GPM; it is also available in a 36 GPM configuration for higher-flow rigs |
Rule of thumb: the cleaner should be nozzle-matched to the flow your machine actually delivers. Tell us your machine's GPM and we will tip the cleaner to suit.
Who it's for
- Contractors building their own truck or trailer rig
- Upgrading from 4-8 GPM to commercial flow
- Paver sealing crews who want faster prep
How to use it
- Bolt the skid to the deck and connect the fuel supply (for example our aluminum fuel cell).
- Connect a buffer tank or supply line and a 3/8" or 1/2" pressure hose.
- Prime and start the machine following the engine and pump manuals.
- Match your surface cleaner and nozzles to 10 GPM (see chart).
- After use, flush chemicals and winterize before freezing temperatures.
Canadian climate note
Drain the pump or add pump antifreeze before any night below freezing.
Bought in Canada, supported in Canada
StoneSealer Canada is based in BC and ships across Canada. Prices are in CAD, so there are no cross-border surprises, and you get set-up help and parts support from a team that uses this equipment on stone, paver and concrete jobs. Financing may be available on larger equipment (OAC) - ask us.
Frequently asked questions
What PSI and GPM is the HiLow skid?
3200 PSI at 10 GPM.
What engine does it use?
A CRX 750 with electronic fuel injection.
Does it come with a gun and hose?
No. Gun/wand, tips and hose are sold separately.
What surface cleaner should I use with 10 GPM?
The 26" HiLow Surface Cleaner in the 10 GPM configuration or the Stripinator.
Is it hot water?
No, this is a cold water unit.
Use with
FAQ
Frequently asked questions
Still unsure which product fits your surface? Our team answers product and application questions.
Ask our teamWhat PSI and GPM is the HiLow skid?
3200 PSI at 10 GPM.
What engine does it use?
A CRX 750 with electronic fuel injection.
Does it come with a gun and hose?
No. Gun/wand, tips and hose are sold separately.
What surface cleaner should I use with 10 GPM?
The 26" HiLow Surface Cleaner in the 10 GPM configuration or the Stripinator.
Is it hot water?
No, this is a cold water unit.
Is StoneSealer Canada an authorized HiLow Solutions dealer?
Yes. StoneSealer Canada is an authorized HiLow Solutions dealer in Canada and ships HiLow equipment across Canada from British Columbia.
